Migrate to MySQL Community 8.4¶

Percona Server supports Percona-only features for performance and security. You can migrate to MySQL Community Edition (CE) when you follow the best practices.

Percona Server and MySQL CE share core code. Percona adds features that MySQL CE does not include. Some features create a “one-way door”. MySQL CE cannot interpret metadata or structures from those features. Affected features include MyRocks, compressed columns, compression dictionaries, Percona keyring components (Vault, KMIP, AWS KMS), the Percona Audit Log plugin, PAM/LDAP authentication, Data Masking, and the thread pool.

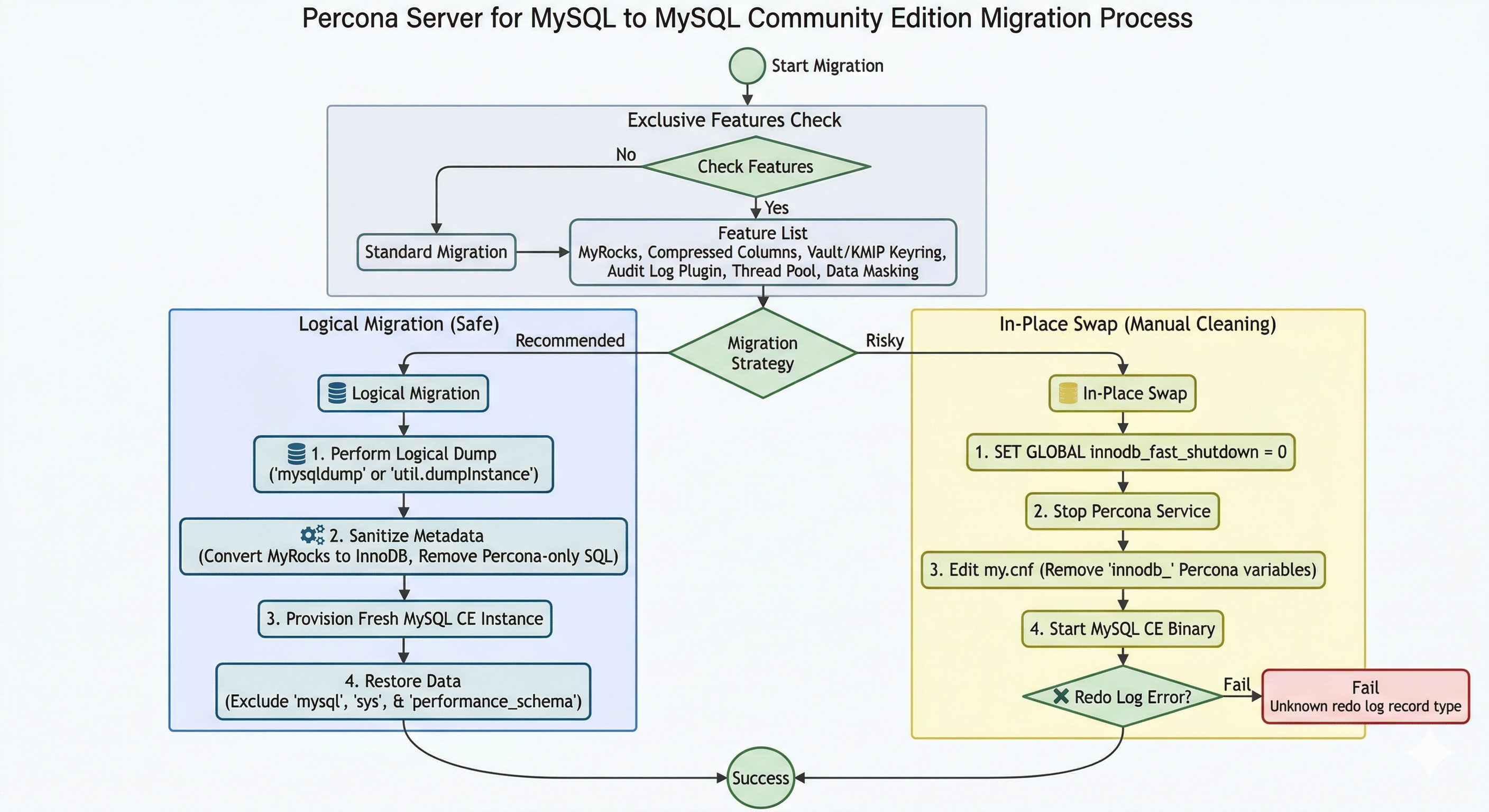

The following diagram summarizes migration paths. The paths cover a Percona-exclusive feature check, logical dump and restore (recommended), in-place binary swap with cleanup, and the main steps in each path.

Percona Server for MySQL to MySQL Community Edition migration process

Exclusive features¶

When you plan a migration to MySQL CE, identify features that are exclusive to Percona. The following CE-incompatible features are inactive by default. You must install or configure MyRocks, the Percona Audit Log plugin, the Audit Log Filter component, Data Masking, and PAM/LDAP authentication explicitly. The thread pool is built in but inactive until you set thread_handling=pool-of-threads in the configuration. The following table summarizes the main exclusive features.

Feature	Notes
MyRocks Storage Engine	Not in MySQL CE; requires explicit installation. Migration: see Performance and engine.
Percona Audit Log Plugin	Not in MySQL CE. Migration: see Security and auditing.
Audit Log Filter	Not in MySQL CE. Migration: see Security and auditing.
PAM / LDAP Authentication	Not in MySQL CE; require manual configuration. Migration: see Security and auditing.
Data Masking	Not in MySQL CE; must be manually installed. Migration: see Security and auditing.
Thread Pool	Built in but inactive until `thread_handling=pool-of-threads`. Migration: see Performance and engine.

Performance and engine features¶

Percona Server includes optimizations that MySQL Community cannot parse or execute. The following table describes migration actions for engine-related exclusive features. See Exclusive features for the full list.

Feature	Migration action
XtraDB Enhancements	Remove Percona-only `innodb_` variables from `my.cnf` (such as `innodb_empty_free_list_algorithm`, `innodb_track_changed_pages`, `innodb_corrupt_table_action`, `innodb_cleaner_lsn_age_factor`). Basic InnoDB data is compatible.
Thread Pool	Disable the thread pool and use the default one-thread-per-connection model.
MyRocks Storage Engine	Migrate tables to InnoDB before dump (or edit dump to change `ENGINE=MyRocks` to `ENGINE=InnoDB`).
Compressed columns and compression dictionaries	Decompress or alter columns before dump; no CE equivalent. See the linked doc. Migration to CE is not possible until columns are changed when tables use compressed columns.

Use the Percona Server system variables reference to list Percona-specific innodb_ variables. Remove from my.cnf any variable that does not exist in MySQL Community Edition 8.4.

Compressed columns and compression dictionaries block many migrations. You cannot migrate to MySQL CE while user tables use compressed columns. Remove or alter those columns (such as decompress the columns) before a logical dump and restore. The compressed-columns feature also creates additional tables in the system tablespace. Query the INFORMATION_SCHEMA views COMPRESSION_DICTIONARY and COMPRESSION_DICTIONARY_TABLES to detect compression dictionaries. See Compressed columns with dictionaries for view structure. Those system tables may cause problems when moving to MySQL CE even when you do not use compressed columns in user tables.

Security and auditing¶

The following table lists migration actions for security and auditing features that are exclusive to Percona. See Exclusive features for the full list.

Feature	Migration action
Audit Log Plugin	Disable auditing or use a community-supported alternative.
Audit Log Filter	Uninstall the component and remove the component configuration.
PAM / LDAP Authentication	Migrate users to `caching_sha2_password` or `mysql_native_password` before switching.
Data Masking	Uninstall the Data Masking components.

Operational and monitoring features¶

The following table summarizes operational and monitoring features that affect migration to MySQL CE.

Feature	Notes
Extended Slow Query Log	Percona’s slow query log includes extra fields (such as `Rows_examined` and `Thread_id`). MySQL CE fails to start when Percona-only log configuration variables remain in the config file.
Utility Components	Uninstall features such as the UUID_VX component or keyring plugins that are exclusive to Percona.
Percona Toolkit UDFs	Not in MySQL CE. Uninstall the component and rewrite any views, triggers, stored procedures, or generated columns that call these functions before migration.

Use the Percona Server system variables reference to find Percona-only slow-query and log variables. Remove from my.cnf any of these variables when present: log_slow_filter, log_slow_rate_limit, log_slow_rate_type, log_slow_sp_statements, log_slow_verbosity, slow_query_log_always_write_time, and slow_query_log_use_global_control.

Remove or replace Percona-exclusive keyring components and variables before migration. MySQL CE does not support the following components. Uninstall them and remove their configuration:

component_keyring_vault (HashiCorp Vault), component_keyring_kmip (KMIP), and component_keyring_kms (AWS KMS). See the Keyring components overview for details.
keyring_vault_config and keyring_vault_timeout. Remove these variables from my.cnf. The Percona Server system variables reference lists all Percona-only variables.

MySQL CE supports file-based keyring components (such as component_keyring_file and component_keyring_encrypted_file). Plan to use one of these keyring options, or another option documented for MySQL CE, when you need encryption after migration.

You can migrate to MySQL CE when you use Percona keyring components (Vault, KMIP, or AWS KMS). You cannot use an in-place package swap for that path. MySQL CE cannot load those components or decrypt data encrypted with them. Export data from Percona Server while the keyring is active; the server decrypts on read. Restore the dump into a fresh MySQL CE instance. Enable a CE-supported keyring (such as the file component) on the CE instance when you need encryption at rest after migration.

MySQL CE may not read pages when you used Percona enhanced encryption, specialized page compression, or fast_checksum. Those options alter how data is written to disk. The Community binary cannot open that on-disk layout. Before migration, complete these steps:

Do not copy data files or perform an in-place binary swap.
Run mysqldump (or another logical dump tool) from Percona Server while the relevant features remain enabled so the server can read the data.
Restore the dump into a fresh MySQL CE instance.
Remove Percona-only on-disk format options (such as fast_checksum) from the CE instance configuration.

Percona Toolkit UDFs¶

Percona Server can install optional Percona Toolkit UDFs (fnv_64, fnv1a_64, and murmur_hash) through the component_percona_udf component. MySQL CE does not include these functions. MySQL CE fails when parsing or executing a view, trigger, stored procedure, event, or generated column that references them. A logical restore also fails when dump metadata still references these functions.

Before migration, locate registered functions and dependent SQL objects on Percona Server. Then remove or rewrite those objects:

SELECT component_id, component_urn
FROM mysql.component
WHERE component_urn LIKE '%percona_udf%';

SELECT name, type, dl
FROM mysql.func
WHERE dl LIKE '%toolkit%'
   OR dl LIKE '%fnv%'
   OR dl LIKE '%murmur%'
   OR name IN ('fnv_64', 'fnv1a_64', 'murmur_hash');

SELECT ROUTINE_SCHEMA, ROUTINE_NAME, ROUTINE_TYPE
FROM information_schema.ROUTINES
WHERE ROUTINE_DEFINITION LIKE '%fnv_%'
   OR ROUTINE_DEFINITION LIKE '%murmur_hash%';

SELECT TABLE_SCHEMA, TABLE_NAME
FROM information_schema.VIEWS
WHERE VIEW_DEFINITION LIKE '%fnv_%'
   OR VIEW_DEFINITION LIKE '%murmur_hash%';

On Percona Server, uninstall the component (or drop legacy functions when present). Change each dependent object to use CE-supported expressions:

UNINSTALL COMPONENT 'file://component_percona_udf';

When functions were registered through the older mysql.func mechanism, drop them explicitly after uninstalling the component. Rewrite or drop routines and views that still reference the function names. Then run a logical dump.

Best practices: migrating to MySQL CE¶

An in-place package swap rarely succeeds when you have used Percona-exclusive features. Follow the sections in this guide for a reliable migration.

Requirement for logical migration¶

Binary incompatibilities and Percona-specific metadata block many in-place paths. MyRocks and Percona keyring components are common causes. The reliable method to migrate to MySQL CE is a logical dump and restore.

Complete these steps for logical migration:

Provision a fresh instance: configure a new MySQL CE instance.
Dump data: use mysqldump (or another logical dump tool) to export data from Percona Server.
Restore: import the logical file into the fresh MySQL CE instance.

Metadata and sanitization steps¶

Dump and restore alone often fail when Percona-specific features left traces in metadata. Apply the following sanitization steps before migration:

Storage engine conversion: convert MyRocks tables to InnoDB before the dump, or edit the SQL script to change ENGINE=MyRocks to ENGINE=InnoDB.
Compressed columns and compression dictionaries: remove or alter compressed columns before migration. Change COLUMN_FORMAT COMPRESSED to COLUMN_FORMAT DEFAULT or another supported format when needed. MySQL CE does not support compressed columns.
Authentication cleanup: drop or modify users that use Percona-exclusive plugins (such as authentication_pam or authentication_ldap). Assign a CE-supported plugin (such as caching_sha2_password) before migration.
Configuration sanitization: remove all Percona-only variables from my.cnf (such as audit_log_*, thread_pool_*, or extended slow_query_log variables). MySQL CE exits at startup when the configuration file contains a Percona-specific variable.
On-disk format (enhanced encryption, specialized page compression, or fast_checksum): do not copy data files or switch binaries in place when InnoDB page layout changed. Run a logical dump from Percona Server while the server runs and the feature remains enabled. Restore the dump into a fresh MySQL CE instance. Omit Percona-only on-disk format options from the CE configuration.
System table cleanup: Percona sometimes adds columns to system tables for internal tracking. A logical dump of user databases is usually safe. Dumping and restoring the mysql system schema can cause severe schema mismatches.
System schemas (performance_schema, sys): Percona 8.4 adds telemetry and diagnostic tables that MySQL CE does not recognize. Reusing or restoring those schemas leaves orphaned metadata. Orphaned objects can collide with tables or columns during a future MySQL CE minor-version upgrade. Prefer a logical dump and restore of user data only. Let the MySQL CE instance create performance_schema and sys at startup. See Telemetry on Percona Server for MySQL and Additional PERFORMANCE_SCHEMA tables.

Perform a clean shutdown before an in-place binary swap¶

The log sequence number (LSN) is a 64-bit integer. InnoDB uses the LSN as a unique identifier for every database change. The LSN orders and recovers InnoDB work.

Standard MySQL LSN records track inserts, updates, and deletes. Percona Server adds extra information to log records. The extra data supports fast checkpointing, parallel doublewrite buffers, and changed page tracking for incremental backups.

Percona Server writes specialized record types into the redo log (ib_logfile0, ib_logfile1). When you shut down Percona Server and start MySQL CE against the same data directory, MySQL CE runs crash recovery on the redo log. The MySQL CE parser encounters Percona-specific log records without a matching definition. The MySQL service fails to start with an error similar to the following:

[ERROR] [MY-011899] [InnoDB] Unknown redo log record type 123

Empty the redo log before you switch binaries. Use a clean shutdown. Follow these steps:

Set the global fast shutdown option to 0 (slow/full shutdown) so that InnoDB flushes all dirty pages and clears the redo log completely:
```
SET GLOBAL innodb_fast_shutdown = 0;
```
With the default value 1, the server skips a full purge and insert buffer merge and can leave data in the redo log. With value 0, the server flushes all dirty pages and clears the redo log completely.
Stop the Percona Server service.
Optionally, move or delete the redo log files (ib_logfile0 and ib_logfile1) from the data directory so that MySQL CE does not see old log files. This step is optional but reduces the risk of parsing Percona-specific log records.
Replace the Percona Server binaries with MySQL Community Edition (install MySQL CE).
Start MySQL. With the redo log empty or removed, MySQL CE starts without parsing Percona-specific LSN or log records.
Validate system metadata after MySQL CE starts. A clean shutdown clears the redo log but does not remove Percona telemetry or diagnostic objects from performance_schema, sys, or the shared mysql schema. Those structures remain in the system tablespace metadata. The MySQL CE data dictionary parser can encounter columns and tables that Percona authored but CE did not. Monitor the error log for data dictionary or schema upgrade warnings. Test a MySQL CE minor-version upgrade on a staging copy of the datadir before you upgrade production. See System schemas during an in-place binary swap.

System schemas during an in-place binary swap¶

An in-place binary swap keeps the existing data directory. On-disk definitions for the mysql, performance_schema, and sys schemas remain. MySQL CE does not remove Percona-only telemetry or diagnostic objects from performance_schema and sys. The CE instance often starts after a clean shutdown and configuration cleanup. Extra tables are not required for normal operation. Extra objects remain on disk. They can cause errors or failed schema steps during a later MySQL CE minor-version upgrade. The CE binary expects a schema layout that matches a vanilla installation.

The mysql system schema is also shared. Percona may add columns or internal structures that CE does not use. CE usually tolerates unused extras. Dumping and restoring the mysql schema during a logical migration can still produce severe mismatches. The same caution applies when you reuse a Percona-populated mysql schema after an in-place swap and later run upgrade helpers against that datadir.

Treat an in-place swap as high risk when Percona telemetry or diagnostic tables are present. Prefer a logical dump and restore of user databases only. Let MySQL CE create fresh performance_schema and sys schemas. When you must use an in-place swap, validate after the first successful CE startup. Check the error log. Confirm mysql.component contains no Percona-only entries. Test a minor-version upgrade on a staging copy of the datadir before you upgrade production.

Data dictionary and SDI compatibility¶

Starting in MySQL 8.0, table metadata lives in the InnoDB transactional data dictionary. Tablespace files also store Serialized Dictionary Information (SDI). User tables that use standard InnoDB row formats are binary-compatible between Percona Server 8.4 and MySQL CE 8.4. Compatibility applies when you do not use Percona-only on-disk features. Those features include compressed columns, specialized page compression, fast_checksum, and enhanced encryption layouts. A clean shutdown with innodb_fast_shutdown = 0 can leave a data directory that CE opens for ordinary InnoDB user data after the redo log is cleared.

SDI and dictionary compatibility do not apply when Percona-only features altered table or page layout. Those cases require a logical dump and restore. Do not use an in-place file swap.

Replication compatibility for rolling migrations¶

Many production migrations use replication instead of full downtime. Operations teams often provision a MySQL CE 8.4 replica under a running Percona Server 8.4 source. The replica synchronizes until cutover. This rolling path reduces dump/restore windows when prerequisites are met.

A MySQL CE 8.4 instance can replicate as a downstream replica from a Percona Server 8.4 source when the replica uses only CE-supported features. The binary log stream must contain only CE-compatible events. Confirm the following before cutover:

Row-Based Replication (RBR) is required on the source and replica. Set binlog_format=ROW. RBR avoids statement-execution differences between Percona Server and MySQL CE.
MyRocks (and other Percona-exclusive storage engines) must not write transactions to the binary log. Convert MyRocks tables to InnoDB on the source before replication, or ensure the workload does not use MyRocks.
Percona Toolkit UDFs (fnv_64, fnv1a_64, murmur_hash) must not appear in replicated statements. Rewrite or drop dependent routines on the source first.
The replica my.cnf must not contain Percona-only system variables. Unknown variables prevent MySQL CE from starting.
Match Global Transaction Identifier (GTID) mode and enforce_gtid_consistency when you use GTIDs. Confirm version-specific replication features on both source and replica.
Percona-only plugins and components must not load on the replica. Uninstall Audit Log Filter, Data Masking, Percona keyring components, and similar features on the replica before you start MySQL CE.

After cutover, run the identification queries on the former source when that instance will also run MySQL CE.

A clean shutdown and empty redo log do not remove other incompatibilities. Examples include Percona-only variables in my.cnf, plugins, and on-disk page formats. Prefer a logical dump and restore unless you sanitized configuration and confirmed no Percona-only features alter data or metadata.

Percona-specific Data Compression modifies .ibd data files on disk. A clean shutdown does not fix that incompatibility. Standard MySQL cannot read those compressed pages. Before migration, use a logical dump (such as mysqldump) and import into a MySQL CE instance. Do not copy data files or attempt an in-place binary swap.

Summary of the one-way door risk¶

Feature	Risk Level	Reversion Difficulty
MyRocks	High	Requires full table conversion to InnoDB before dump.
Compressed columns / compression dictionaries	High	Cannot migrate to CE when tables use them; decompress or alter columns before dump. System tablespace changes may cause issues even when unused.
Enhanced encryption / specialized page compression / `fast_checksum`	High	These options alter data on disk; MySQL CE cannot read those pages. Use a logical dump from Percona with the features active, then restore to CE. Do not copy data files or switch binaries in place. Remove Percona-only on-disk format options from config before bringing up CE.
Audit Log Plugin / Audit Log Filter / PAM / LDAP / Data Masking	Medium	Requires dropping or altering users, uninstalling plugins and components, and removing configuration.
Configuration	Low	Requires manual cleanup of `my.cnf`.
Thread Pool	Low	Requires a configuration change back to default thread handling.
performance_schema / sys (Percona telemetry and diagnostic tables)	Medium	Orphaned metadata can collide during future CE minor-version upgrades. Use a logical dump/restore of user data only; do not dump/restore system schemas.
Percona Toolkit UDFs (`fnv_64`, `fnv1a_64`, `murmur_hash`)	Medium	Uninstall `component_percona_udf`; rewrite or drop dependent views, routines, and generated columns.

How to identify active Percona-exclusive features¶

Run the following SQL commands to find Percona-exclusive features in your environment. These queries target incompatible components and metadata that block migration to MySQL CE.

Identify active exclusive plugins¶

The following query identifies active plugins only (not components). The query returns Percona-exclusive plugins such as the Audit Log plugin, PAM/LDAP authentication, and MyRocks.

SELECT PLUGIN_NAME, PLUGIN_VERSION, PLUGIN_STATUS
FROM INFORMATION_SCHEMA.PLUGINS
WHERE PLUGIN_NAME IN (
    'audit_log',
    'authentication_pam',
    'authentication_ldap_simple',
    'authentication_ldap_sasl',
    'ROCKSDB',
    'ROCKSDB_TRX',
    'ROCKSDB_LOCKS'
) AND PLUGIN_STATUS = 'ACTIVE';

Identify active exclusive components¶

Percona-exclusive components (such as the Audit Log Filter, Data Masking, and keyring components) register in mysql.component. The following query lists installed components whose URN matches known Percona-only components.

SELECT component_id, component_urn
FROM mysql.component
WHERE component_urn LIKE '%audit_log_filter%'
   OR component_urn LIKE '%masking_functions%'
   OR component_urn LIKE '%keyring_vault%'
   OR component_urn LIKE '%keyring_kmip%'
   OR component_urn LIKE '%keyring_kms%';

Check for MyRocks storage engine usage¶

MyRocks is a high-risk one-way door. Check whether any user tables use the engine. Convert those tables to InnoDB before a logical dump.

SELECT TABLE_SCHEMA, TABLE_NAME, ENGINE
FROM INFORMATION_SCHEMA.TABLES
WHERE ENGINE = 'RocksDB'
AND TABLE_SCHEMA NOT IN ('information_schema', 'sys', 'performance_schema', 'mysql');

Identify Percona-specific authentication¶

MySQL CE does not recognize users that use Percona PAM or LDAP plugins. Find those users and change authentication to caching_sha2_password or mysql_native_password before migrating.

SELECT user, host, plugin
FROM mysql.user
WHERE plugin LIKE '%pam%'
   OR plugin LIKE '%ldap%';

Verify thread pool status¶

The thread pool code exists in Percona Server. The thread pool affects migration only when actively configured. The following command shows whether the server uses Percona scalable thread pool handling instead of the standard MySQL connection model.

SHOW VARIABLES LIKE 'thread_handling';
-- When the result is 'pool-of-threads', the Percona Thread Pool is active.

Identify Percona Toolkit UDFs¶

Percona Toolkit UDFs (fnv_64, fnv1a_64, murmur_hash) support fast checksumming and hashing. Teams often use them in views, stored procedures, triggers, or generated columns for sharding or indexing. MySQL CE does not ship these compiled symbols.

Audit the UDF registry and component installation on Percona Server before export:

SELECT component_id, component_urn
FROM mysql.component
WHERE component_urn LIKE '%percona_udf%';

SELECT name, type, dl
FROM mysql.func
WHERE name IN ('fnv_64', 'fnv1a_64', 'murmur_hash')
   OR dl LIKE '%toolkit%';

Drop Percona Toolkit UDFs before export

A logical restore into MySQL CE fails when the dump contains views, triggers, stored procedures, or generated columns that reference Percona Toolkit UDFs. Uninstall component_percona_udf, drop legacy mysql.func registrations, and refactor dependent routines on Percona Server before the export phase.

Search for SQL objects that reference these functions:

SELECT ROUTINE_SCHEMA, ROUTINE_NAME, ROUTINE_TYPE
FROM information_schema.ROUTINES
WHERE ROUTINE_DEFINITION LIKE '%fnv_%'
   OR ROUTINE_DEFINITION LIKE '%murmur_hash%';

SELECT TABLE_SCHEMA, TABLE_NAME
FROM information_schema.VIEWS
WHERE VIEW_DEFINITION LIKE '%fnv_%'
   OR VIEW_DEFINITION LIKE '%murmur_hash%';

Before migration, run UNINSTALL COMPONENT 'file://component_percona_udf'; on Percona Server. Drop legacy mysql.func entries when present. Rewrite dependent objects. See Percona Toolkit UDFs.

Check for Data Masking components¶

To confirm Data Masking separately from the general components query in the preceding section, run:

SELECT * FROM mysql.component WHERE component_urn LIKE '%masking%';

Pre-migration sanitization summary¶

After you identify these features, apply the following actions:

For MyRocks tables: run ALTER TABLE <TABLE_NAME> ENGINE=InnoDB;.
For PAM/LDAP users: run ALTER USER '<USER>'@'<HOST>' IDENTIFIED WITH 'caching_sha2_password' BY '<PASSWORD>';.
For active plugins: run UNINSTALL PLUGIN <PLUGIN_NAME>; and remove matching load_extension or plugin-load entries from my.cnf.
For active components: run UNINSTALL COMPONENT '<COMPONENT_URN>'; for each Percona-only component (such as 'file://component_audit_log_filter', 'file://component_masking_functions', or keyring components). Remove the component from the server manifest or configuration so the component does not load on the next startup.
For Percona Toolkit UDFs: run UNINSTALL COMPONENT 'file://component_percona_udf';, drop legacy entries in mysql.func, and rewrite or drop views, triggers, stored procedures, and generated columns that reference fnv_64, fnv1a_64, or murmur_hash.

Search my.cnf for variable names in the Percona Server system variables reference. Remove any variable that MySQL CE does not support. MySQL CE exits at startup when a Percona-only variable remains in the configuration file.

Pre-migration checklist¶

Category	Percona Feature to Disable/Remove	Community Alternative
Engine	MyRocks Storage Engine	Migrate to InnoDB
Engine	Compressed columns / compression dictionaries	Decompress or alter columns; no CE equivalent
Scaling	Scalable Thread Pool	Default connection handling
Auth	LDAP/PAM Authentication	caching_sha2_password
Audit	Percona Audit Log Plugin	Remove or uninstall
Audit	Audit Log Filter component	Uninstall component and remove configuration
Security	Data Masking component	Uninstall component
Security	Keyring components (Vault, KMIP, AWS KMS)	Uninstall; use CE file-based keyring if needed
Engine / Security	Enhanced encryption, specialized page compression, or `fast_checksum`	These alter data on disk; CE may not read those pages. Do not copy data files. Use logical dump from Percona with features active, then restore to CE. Remove Percona-only on-disk format options from config for the CE instance.
Config	Percona-only log/slow-query variables	Remove from `my.cnf` (see system variables reference)
Config	Performance-specific innodb_ tweaks	Reset to default MySQL 8.4 values
Config	keyring_vault_config, keyring_vault_timeout	Remove from `my.cnf`
Other	UUID_VX and other Percona utility components	Uninstall component
Other	Percona Toolkit UDFs (`component_percona_udf`)	Uninstall component; rewrite dependent SQL objects
System schemas	performance_schema / sys (Percona telemetry and diagnostic tables)	Do not dump or restore; let MySQL CE create clean schemas at startup. Dump and restore user data only. In-place swap: extra Percona objects may remain; validate upgrades in staging.
Replication	Rolling migration (CE replica from Percona source)	No MyRocks in binlog; no Toolkit UDFs in routines; matching GTID/binlog settings; CE-clean `my.cnf` on replica
